KTM700 RUS ®

KTM700 RUS ®

About product

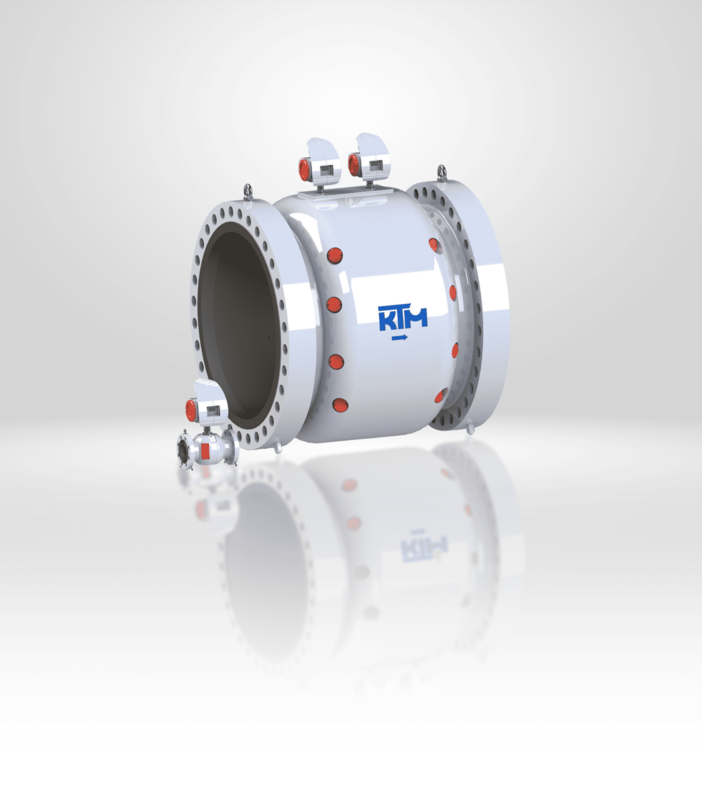

Ultrasonic flow meter for custody gas transfer

Applications

  • Custody transfer of natural gas and associated petroleum gas
  • Custody transfer of hydrogen and hydrogen-injected natural gas
  • Measurement of regasified LNG at cryogenic temperatures
  • Custody transfer gas at distribution stations

Your benefit

  • Arrangement of measuring paths without reflection from the pipeline walls ensures long-term sta-bility, changes in the inner wall surface do not affect to the accuracy of the meter.
  • «Real-time Control» self-diagnostics system ensures on-time notification of an operator
  • High accuracy and reliability of measurements
  • Minimum requirements for the length of the inlet section of the measuring pipeline
  • Up to 3 weeks meter can operate without power supply
  • Built-in real-time performance monitoring (contamination, pulsation)
  • In situ verification without removal from the pipeline – once in 4 years
  • Service life – 15 years

Technical details

Parameter name КТМ700 RUS Notes
Nominal pipe diameter (DN), mm 80 — 1400
Ambient temperature, °С -40… +60 Extended range: -70 with thermal cover
Gas temperature, °С -46… 180 Extended range: -194…330
Storage temperature, °С -50…+60
Operating pressure, bar 0… 280 Extended range: up to 450 bar
Number of measurement paths 4, 4х4, 4+1*, 4х3+1* * — diagnostic path
Number of information processing units (IPU) 1,2* * — on request
Ultrasonic transducer frequencies, kHz 80; 135; 200; 350
I/O ports
Analog outputsAnalog inputsDigital outputsDigital inputs
USB/Serial portsOptional output signals
1 output: 0/2/4 … 22 mA, + 500 Ω According to NAMUR NE43 (Standardization Association for Measurement and Control)
2 inputs: 0…5/10 V or 0…20 mA
Pulse/Frequency output (additional module)
3 outputs: 30 V DC/33 mA, max. frequency 10 kHz, out-puts OC (Open collector) or NAMUR
Status signals: normal operation/maintenance, service, and function control, range limit, maintenance needed.
1 digital input, 30 V DC/33 mA.
USB (optional)
RS485 — standard
Ethernet (optional)
4-20мА/HART, RS485/MODBUS RTU/ASCII, Ether-net/MODBUS TCP, PROFIBUS
Ex approvals
— IPU;
— Interface module
IP66/IP67
IP54
Supply voltage, V 12…30
Power consumption, Watt < 6

Metrological parameters

Parameter name Error limit
Volume flow rate measurement error limit o.c., %
Qmin < Q < Qt
Qt < Q < Qmax
±1,0
±0,3

Standard sizes of the meter and corresponding flow rates with respective gas velocities

Meter diameter Volume flow rate o.c. m3/h Gas velocity, m/s
DN Qmin Qт Qmax Vt Vmax
80 5 40 1000 1.5 61
100 8 65 1600 1.5 63
150 16 100 3000 1.5 52
200 20 160 4500 1.5 44
250 25 240 7000 1.5 44
300 35 310 8000 1.5 39
350 45 420 10000 1.5 36
400 60 550 14000 1.5 38
450 100 700 17000 1.5 37
500 130 850 20000 1.5 35
550 150 1000 24000 1.5 35
600 180 1200 32000 1.5 39
650 240 1400 35000 1.5 36
700 280 1700 40000 1.5 36
750 320 1900 45000 1.5 35
800 360 2200 50000 1.5 34
850 400 2500 55000 1.5 33
900 450 2800 66000 1.5 36
950 500 3100 70000 1.5 34
1000 550 3400 80000 1.5 35
1050 600 3800 85000 1.5 34
1100 650 4100 90000 1.5 32
1150 700 4500 95000 1.5 34
1200 750 4800 100000 1.5 30
1300 900 5600 110000 1.5 28
1400 1000 6500 120000 1.5 27
