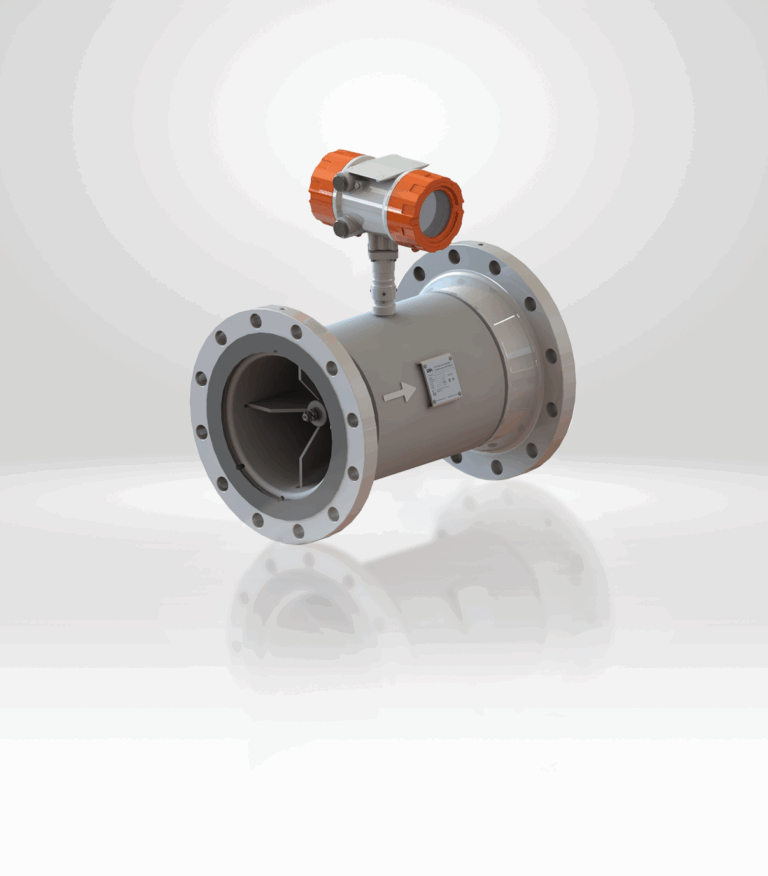

Turbine flow meter KTM
Purpose — Commercial accounting of oil and petroleum products
Advantages:
- • Measurement error 0.15%
- • Repeatability level of measurement results 0.04%
- • Operation in explosive areas
- • Wide range of operating temperatures and pressures
- • Resistance to contamination of the measured medium
- • Titanium rotor
- • Wear-resistant tungsten carbide bearings
- • Reduction of operating costs due to minimal pressure drop
- • Ease of maintenance due to the modular design principle: the ability to replace the cartridge, simple dismantling and installation of the measuring module
- • Various versions of the electronic measuring part to meet the needs of the customer
METROLOGICAL AND TECHNICAL CHARACTERISTICS
| Parameter name | Parameter value | |
| Nominal bore diameter, mm | 250 | 400 |
| Volume flow rate, m3/h | ||
| minimum | 199 | 429 |
| maximum | 1990 | 4290 |
| Maximum kinematic viscosity of the measured medium, cSt | 100 | 160 |
| Limits of relative measurement (calculation) error,% | ±0,15 | |
| Standard square deviation of the random component of error, % | 0,02 | |
| Temperature of the working medium, °C | from minus 45 to plus 150 | |
| Pressure of the working medium, MPa | до 10,2 | |
